As Chainzone, we explain how our digital billboard solutions function by unpacking the technical architecture, operational flow, and service strategies that keep digital billboard screens vivid, synchronized, and reliable in demanding outdoor environments.
System Modularity And Visual Consistency
We design our digital billboard screens around modular 960mm x 960mm panels available in P6.67, P8, P10, and P16 pitches so projects can match resolution to viewing distance and budget. Each module includes a Smart Module that stores calibrated brightness and color-temperature profiles, maintaining uniform color and grey-scale across large arrays without repeated field calibration. When a module is replaced, its onboard calibration ensures immediate visual alignment with neighboring modules—minimizing downtime and preserving campaign integrity for advertisers.
Signal Processing, Control Flow, And Content Management
We implement a layered signal architecture: content sources feed media servers that decode, scale, and schedule assets; servers then distribute synchronized frame data to control boxes and timing controllers; finally, panels render pixels with high fidelity. The E4 H Series supports refresh rates up to 3840Hz and high grey-scale performance, enabling smooth motion and camera-friendly playback critical for social sharing and broadcast. Remote content management, dayparting, and programmatic integrations allow advertisers to adapt messages instantly, while synchronization protocols eliminate tearing across multi-panel canvases for seamless playback.
Thermal Engineering, Structural Benefits, And Maintenance Access

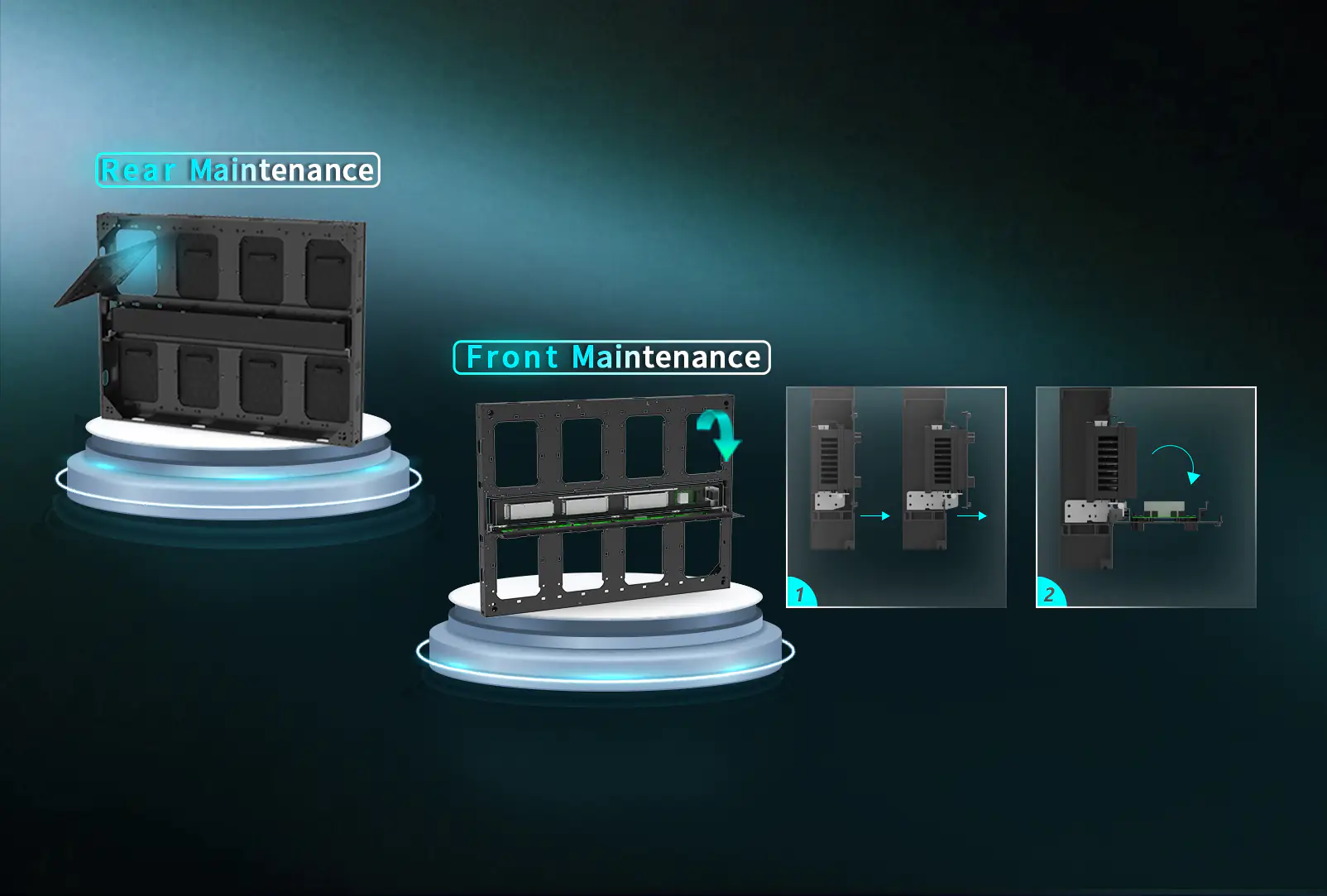

We reduce thermal stress and structural demands through deliberate mechanical choices. The E4 H Series uses a fin-shaped die-cast aluminum back cover for passive heat dissipation, keeping junction temperatures lower during prolonged high-brightness operation. Panels are slim (under 99mm) and light (25kg/m²), simplifying installation on walls, poles, or gantries and lowering installation costs and structural reinforcement needs. Front-and-rear maintenance access improves service efficiency: technicians can reach modules, power supplies, and control hardware from either side depending on site constraints, enabling faster repairs and higher uptime.
Power Management, Image Fidelity, And Smart Module Advantages
We optimize power distribution and driving strategies to balance brightness, energy consumption, and longevity. Each Smart Module retains calibrated data so visual consistency remains without manual adjustment, crucial for large-format digital billboard screens where uniformity affects brand perception. High refresh rates and refined driving electronics reduce flicker and motion artifacts, producing sharp, lifelike visuals that attract attention in stadiums, shopping districts, and roadside campaigns.
Operational Integration And Deployment Use Cases
We integrate E4 H Series installations into comprehensive operational workflows: cloud-based CMS for centralized scheduling, telemetry for real-time health monitoring (temperature, brightness, fault logs), and modular spare-part strategies for rapid field replacement. Common applications include sports stadium displays, highway digital billboards, retail facades, transportation hubs, and corporate signage—scenarios where scalable image quality, flexible content control, and continuous uptime matter most.
Closing Note On Practical Performance And Serviceability
We craft digital billboard solutions that prioritize real-world operability: modular panels for easy servicing, smart calibration to preserve color fidelity, efficient thermal design to extend component life, and dual-side maintenance to reduce downtime. The Chainzone E4 H Series embodies these principles, delivering a scalable, service-friendly platform for outdoor digital billboard screens that meets both technical demands and advertiser expectations.
