As the nerve center of intelligent parking guidance systems, our LED signs are designed for both indoor and outdoor parking facilities. They transform real-time parking space data into vital guidance information—such as distance, direction, availability, and instructions—delivering reliable and efficient parking assistance to users.

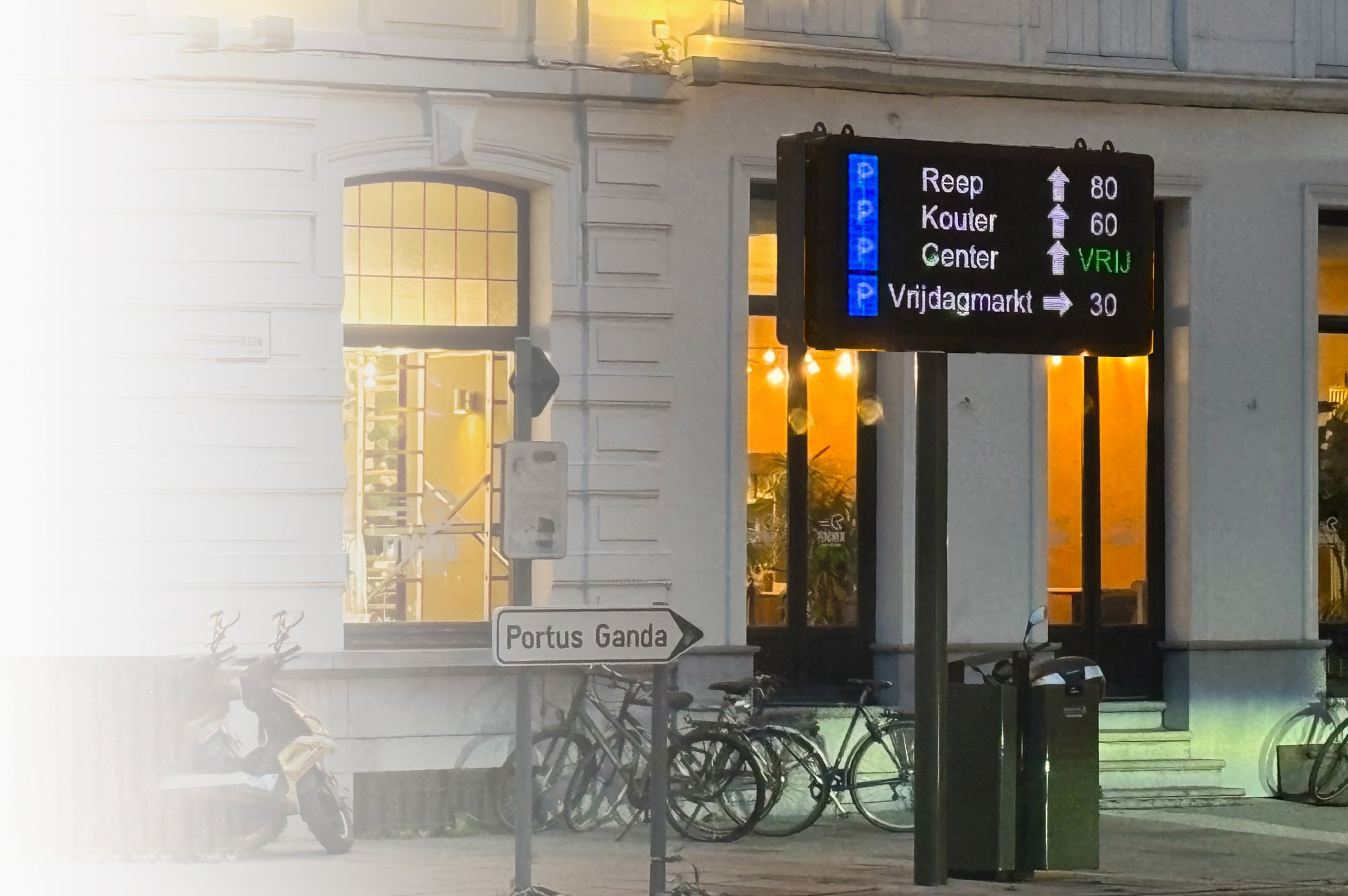

Type A Product
Type A

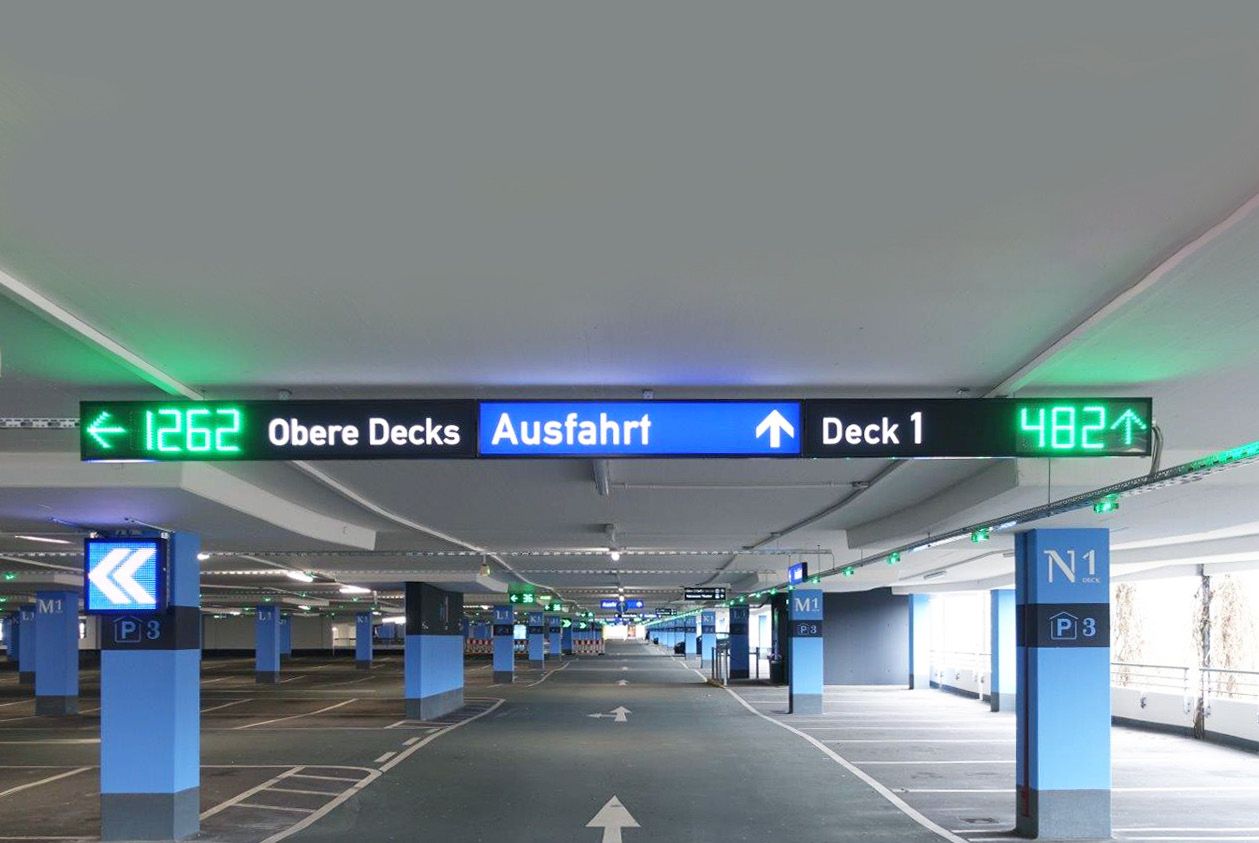

Type B Product
Type B

Chainzone's PGS Product Series

Note: We offer two distinct Parking Guidance Sign types to meet different application needs.
Type A

Features and Function

Flexible and Scalable Design

  • Modular design with flexible extension to different sizes

Durable and Maintenance-Friendly Structure

  • Smart structure for easy maintenance
  • High brightness and waterproof cabinet, suitable for both indoor and outdoor applications

Rich Display Capabilities

  • Full color LED with support for various animations

Standardized Storage and Logistics

  • Standard module and cabinet for easy storage
Type A

Specifications

ModelPIS-8
Pixel Pitch (mm)8
TypeSize ASize BSize CSize D
Display Resolution (HxW)16x3232x3216x6416x96
Display Area (HxW) (mm)128x256256x256128x512128x768
LED3-in-1 SMD LED
ColorFull Color
Brightness>5000 cd/m²
MaintenanceFront Open Door Access
Power Supply12 ~ 36VDC
Ingress Protection ClassIP65
CommunicationRS232 / RS485, Ethernet
OptionalLight Sensor, Wi-Fi, Modem, etc.
Type B

Features and Function

Certified Performance Quality

  • Compliant with EN12966 standards

Durable and Elegant Construction

  • Strong and elegant housing
  • IP65 protection for reliable outdoor performance

Superior Optical and Display Performance

  • Smart optical design for high brightness and high contrast ratio with low power consumption
  • Full-color SMD LED with long lifespan
Type B

Specifications

ModelPIS-10PIS-12
Pixel Pitch (mm)1012
Display Resolution (HxW)12x4816x48
Display Area (HxW) mm120x480192x576
LuminanceRed > 3100 cd/m², Green > 3720 cd/m², Yellow > 7440 cd/m², White > 12400 cd/m²
Viewing AngleB6 (±15° horizontal & -10° vertical down)B7 (±30° horizontal & -20° vertical down)
LED3-in-1 SMD LED
ColorFull Color
Number of Lines1 ~ 5 lines
Cabinet Size (HxW) mm470 / 640 / 810 / 980 / 1150 x 1300
Enclosure MaterialAluminum
Enclosure SurfacePowder Coated, Matte Blank (Other colors available)
Power Supply90 ~ 260VAC (50/60Hz)
Ingress Protection ClassIP65
CertificationEN12966
Brightness controlAutomatic / Manual / Schedule
