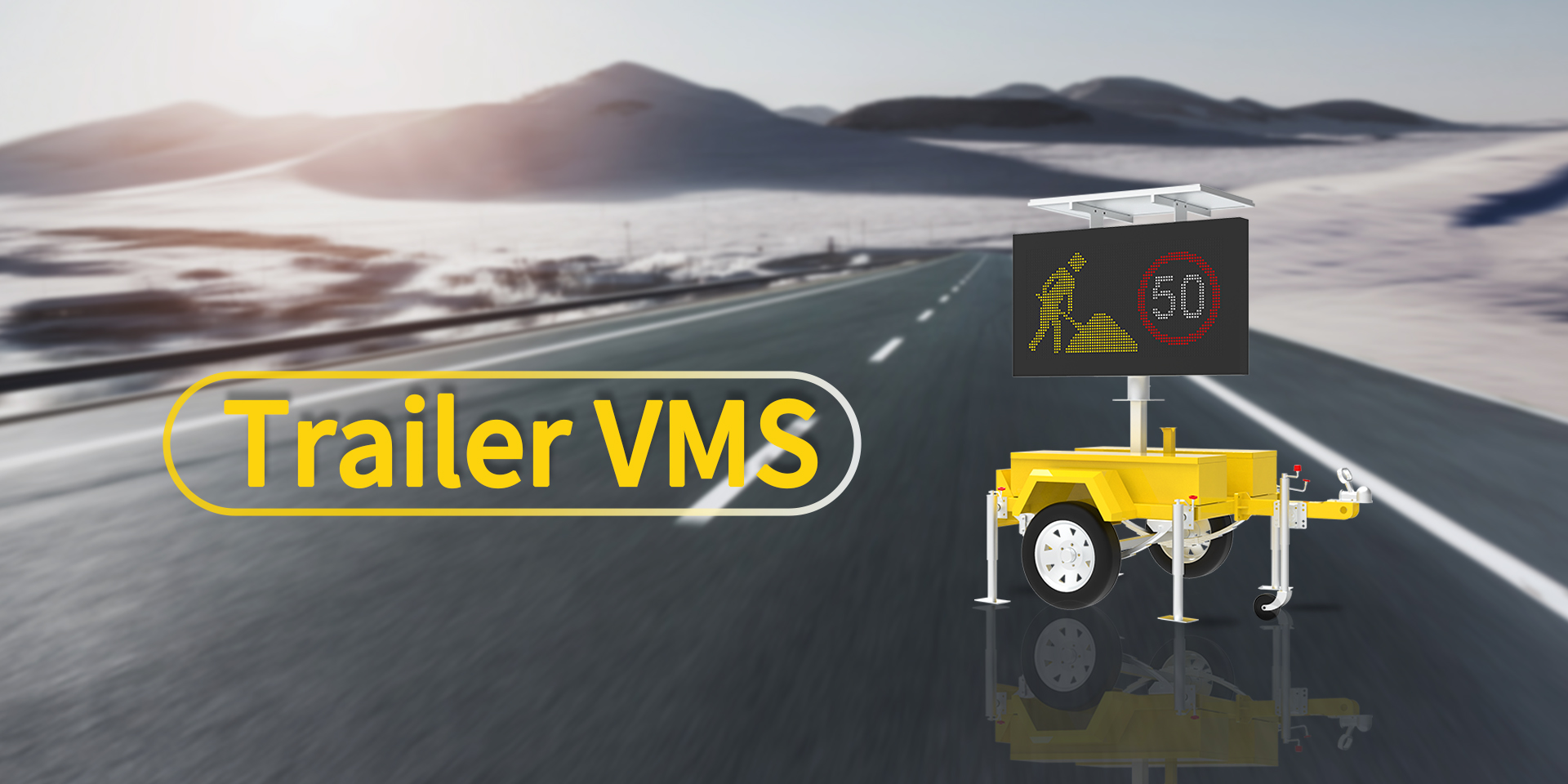

Features and Function

Efficient Power Management

  • The energy-efficient operation allows the VMS to be operational for an extended period
  • Solar charging system with MPPT charging management
  • Automatic shut-down function for the solar charging system when batteries are fully charged, preventing battery damage
  • Provide AC charger to quickly charge the battery

Flexible and Stable Structure

  • The VMS can be rotated and lifted to provide an accurate display angle
  • The retractable jack provides wind resistance and stable parking

Smart Traffic Monitoring

  • Radar speed measurement function to record the state of vehicles on the road

Safety and Security

  • The battery box can be locked against unauthorized access

Specification

ModelTVMS-20M-SMDTVMS-25M-SMDTVMS-31.25M-SMD
Pixel Pitch (mm)202531.25
LED TypeSMD
Module Resolution (pixels) (HxW)8x16200x400250x250
Module Size (mm) (HxW)160x320200x400250x250
Maximum Resolution for Trailer Mounted VMS (pixels) (HxW)48x8056x9664x96
Maximum Size for Trailer Mounted VMS (mm) (HxW)960x16001400x24002000x3000
Cabinet Dimension (mm) (HxWxD)1160x1800x1201600x2600x1202085x3200x180
Display ColorSingle or Full Color
BrightnessRed > 3100 cd/m², Green > 3720 cd/m², Yellow > 7440 cd/m², White > 12400 cd/m²
Physical Characteristics
Enclosure StructureAluminum Housing with Waterproof Modules
Working Temperature-25℃ ~ +60℃
Humidity RangeRH<95%
Ingress Protection ClassIP65
Maintenance AccessFront
Electrical Specifications
Solar Power SystemDC 12V
SensorLight Sensor
CommunicationRS232 / RS485 / Ethernet Via RJ45 / 3G / 4G / 5G
ProtocolNTCIP 1203 / MODBUS / UTMC / XML / Jetfilell / Profibus / RSMP / HTTP / API
Trailer Specifications
Spraying ProcessHot Dip Galvanized / Electrostatic Powder Spraying
Lifting SystemHydraulic Lifting System
Trailer SizeType-A: 1750mmx2250mmType-B: 2050mmx2450mmType-C: 2050mmx3550mm
Total Weight of Trailer and VMSType-A: About 700KGType-B: About 1000KGType-C: About 1200KG
